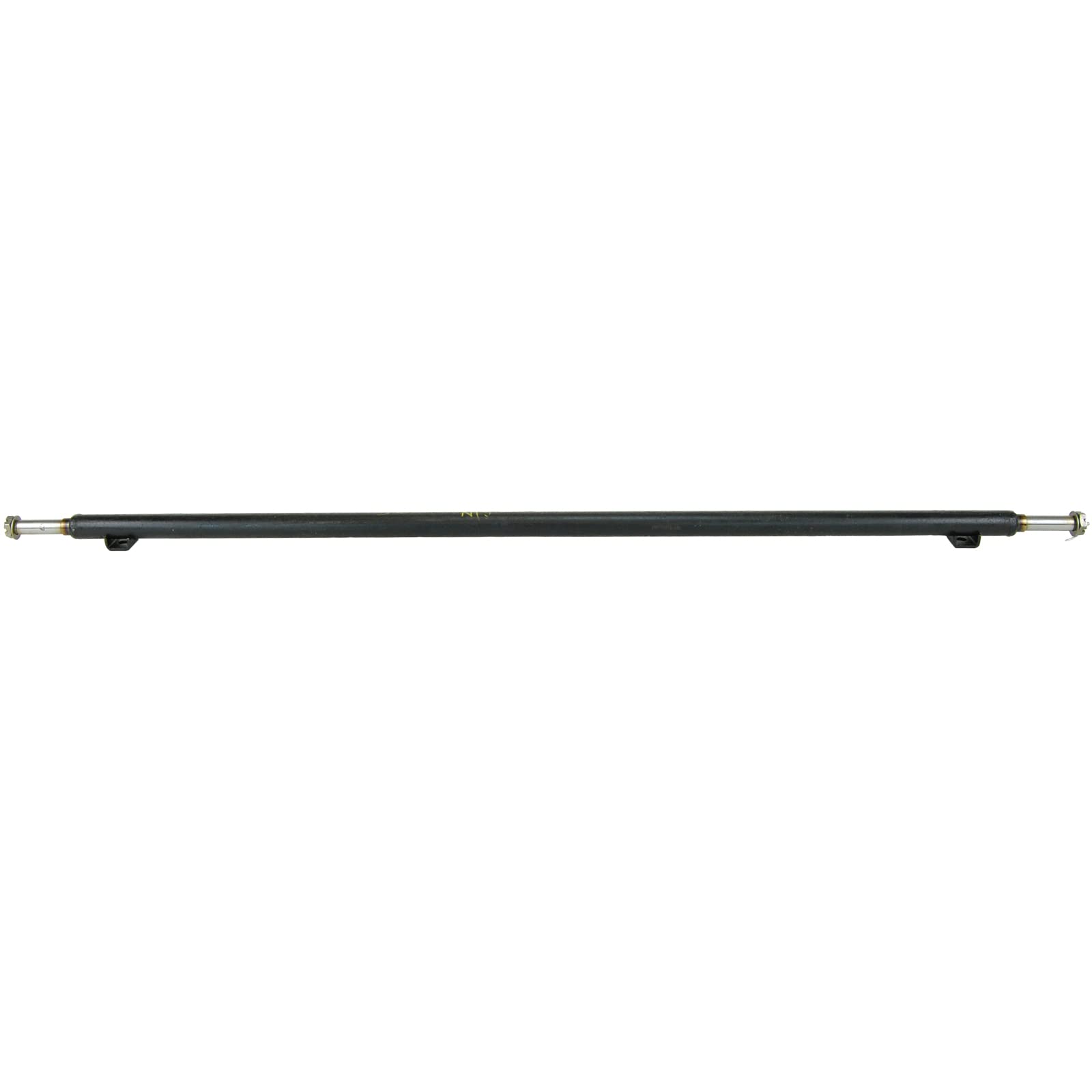

Suitable for freshwater boat trailers and ideal for lightweight utility trailers, this axle has a 2,000lb capacity and is made with 3/16 inch steel wall thickness, measures 1 3/4 inch in diameter and features #BT16 spindles welded into the beam. Comes with spring seats welded at 58 inches.
Hub Face measures 70 inches - Hub Face measures from the face of one hub to the face of the other hub (the face is where the wheel meets the hub).
Overall length measures 75 inches tip to tip.
Spring Center measures 58 inches - Spring Center is measured from the center of one spring to the center of the other, across the axle.
Features the EZ-Lube system.
Comes with spring seats welded, just mount your axle with the appropriate U-bolt kit - No more drilling!
1 3/4 inch diameter Heavy Duty 3/16 inch thick tubing.
Uses inner bearing # 44649 - 1 1/16 inch inner diameter.
Uses outer bearing # 44649 - 1 1/16 inch inner diameter.
Grease Seal - 1.5 inch inner diameter.
Comes with castle nut and cotter key.
Perfect fit. Bolted right up with no issues and on the road in less than an hour.
